W570183

• Part Number: W570183
• Hanger Roller Series #1: 705
• Hanger Roller Series #2: 685
• Figure No: 83
• Actual Thickness of Covering: 2-1/2
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 20"

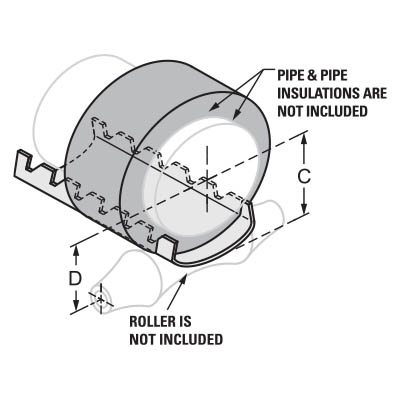

• Center Line of Pipe to Center Line of Saddle C: 12-7/8
• Center Line of Pipe to Center Line of Roller D: 14-13/16
• Weight: 1679 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570182

• Part Number: W570182
• Hanger Roller Series #1: 704
• Hanger Roller Series #2: 684
• Figure No: 82
• Actual Thickness of Covering: 2
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 20"
• Center Line of Pipe to Center Line of Saddle C: 2-5/16
• Center Line of Pipe to Center Line of Roller D: 14-1/4
• Weight: 1498 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570181

• Part Number: W570181
• Hanger Roller Series #1: 703
• Hanger Roller Series #2: 683
• Figure No: 81
• Actual Thickness of Covering: 1-1/2
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 20"
• Center Line of Pipe to Center Line of Saddle C: 11-3/4
• Center Line of Pipe to Center Line of Roller D: 13-11/16
• Weight: 1376 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570180

• Part Number: W570180
• Hanger Roller Series #1: 702
• Hanger Roller Series #2: 682
• Figure No: 80
• Actual Thickness of Covering: 4
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 18"
• Center Line of Pipe to Center Line of Saddle C: 13-1/2
• Center Line of Pipe to Center Line of Roller D: 15-7/16
• Weight: 2195 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570179

• Part Number: W570179
• Hanger Roller Series #1: 701
• Hanger Roller Series #2: 681
• Figure No: 79
• Actual Thickness of Covering: 3
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 18"
• Center Line of Pipe to Center Line of Saddle C: 12-5/16
• Center Line of Pipe to Center Line of Roller D: 14-1/4
• Weight: 1820 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570178

• Part Number: W570178
• Hanger Roller Series #1: 700
• Hanger Roller Series #2: 680
• Figure No: 78
• Actual Thickness of Covering: 2-1/2
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 18"
• Center Line of Pipe to Center Line of Saddle C: 12
• Center Line of Pipe to Center Line of Roller D: 13-5/16
• Weight: 1689 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570177

• Part Number: W570177
• Hanger Roller Series #1: 699
• Hanger Roller Series #2: 679
• Figure No: 77
• Actual Thickness of Covering: 2
• Hanger Roller Size 1: 20
• Hanger Roller Size 2: -
• Pipe Size: 18"
• Center Line of Pipe to Center Line of Saddle C: 11-1/2
• Center Line of Pipe to Center Line of Roller D: 13-1/16
• Weight: 1319 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570176

• Part Number: W570176
• Hanger Roller Series #1: 698
• Hanger Roller Series #2: 678
• Figure No: 76
• Actual Thickness of Covering: 1-1/2
• Hanger Roller Size 1: 20
• Hanger Roller Size 2: -
• Pipe Size: 18"
• Center Line of Pipe to Center Line of Saddle C: 10-7/8
• Center Line of Pipe to Center Line of Roller D: 12-1/2
• Weight: 892 LBS/100 PCS.
• Max Rec Load Lbs: 5000

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570175

• Part Number: W570175
• Hanger Roller Series #1: 697
• Hanger Roller Series #2: 677
• Figure No: 75
• Actual Thickness of Covering: 4
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 16"
• Center Line of Pipe to Center Line of Saddle C: 12-5/16
• Center Line of Pipe to Center Line of Roller D: 14-3/16
• Weight: 2180 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket

W570174

• Part Number: W570174
• Hanger Roller Series #1: 696
• Hanger Roller Series #2: 676
• Figure No: 74
• Actual Thickness of Covering: 3
• Hanger Roller Size 1: 24
• Hanger Roller Size 2: -
• Pipe Size: 16"
• Center Line of Pipe to Center Line of Saddle C: 11-3/16
• Center Line of Pipe to Center Line of Roller D: 13-1/8
• Weight: 1817 LBS/100 PCS.
• Max Rec Load Lbs: 7200

View Engineering Specs and Submittal Form Request a Quote Add to Basket
