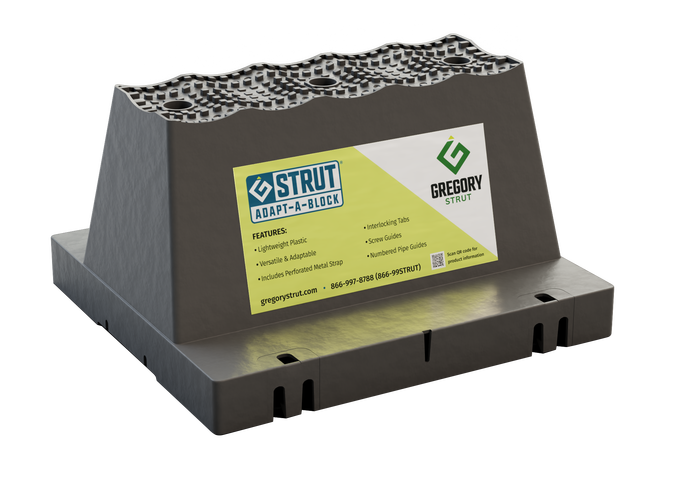

GAB1 Adapt-A-Block

Adapt-A-Block Benefits

The GAB1 plastic rooftop block from G-STRUT® provides a single block or interlocking, multiple base system for roof block variations to accommodate heavier applications and high-wind locations. Pipe grooves facilitate alignment and stabilize the conduit and pipes, while a self-locking nut feature allows quick installation.

• Easy storage with stackable design

• Even weight distribution for greater load-bearing capacity once strut is attached

• Water drainage through sloped edges and bases

• Easy to assemble the nut to fastening rods or bolts

• Numbered pipe grooves align for organizing pipes

• Quick clamp to 2” pipe with perforated metal strap or universal strut

• ½” diameter holes with self-locking nut to accept extension rods, rise clamps and struts

• Blocks interlock to connect in a series; many options for pipes to be secured to a series

Strut Attachment

Easily attach G-STRUT® channel directly to Adapt-A-Block with sheet metal screws and washers. For heavier applications, use ½” bolts.

• Self-locking nut feature for quick installation

• Use the included perforated metal strap to secure the pipes

• Use numbered pipe grooves to align quickly and easily

• Screw both ends of the metal strap using sheet metal screws and following the included screw guides

Riser Rods Adapt-A-Block can be used with up to 12” riser rods, placed in any combination of the three ½” diameter holes. Once attached, riser rods can be adjusted from 8.5” to 10.5”.

• Riser rods elevate any type of G-STRUT® channel

• Self-locking and reinforced nut-shaped void holds the nut for attachment to the riser rods

GAB1 Adapt-A-Block

• Base length: 8”

• Base width: 7.5”

• Height: 5”

• Materials:

• Lightweight plastic shell with Styrofoam base

• Weight: 0.80 lbs.

• Static load capacity: 250 lbs. (without strut)

• Ordering: Packable and Stackable for easy storage and transport.
