Clamps - E-Z Clamp
The EZ Clamp from G-STRUT – means easy/secure installation.
- Versatile in the field
- Heavy-duty construction with electro-galvanized finish

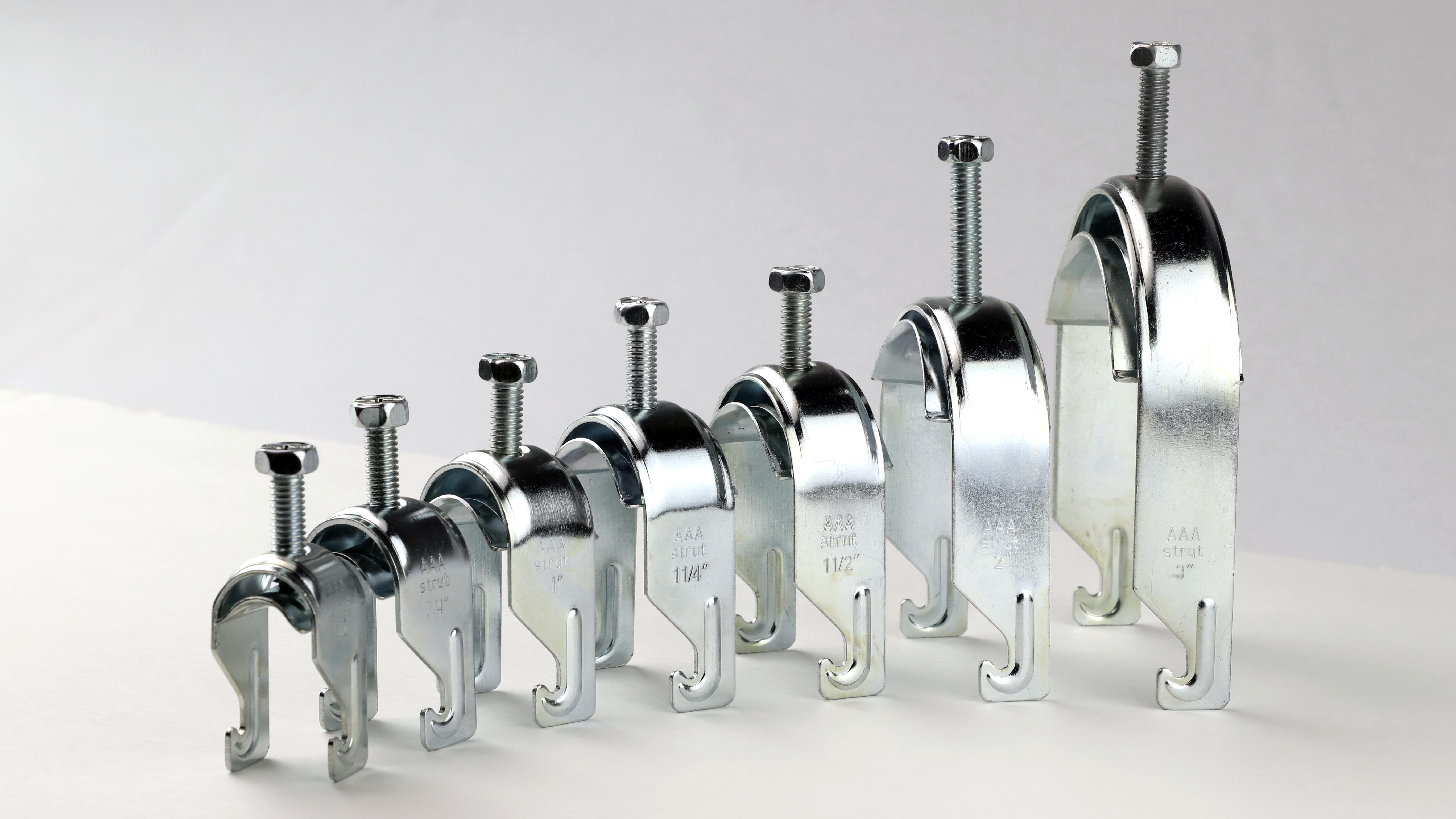

- Full range of sizes from 1/2” to 4”
- Adapts universally with equal trade sizes – rigid conduit, EMT, cable, etc.
- Works with all strut channel depths from 13/16” to 3-1/4”
- One fully assembled piece right out of the box
- One hand installation

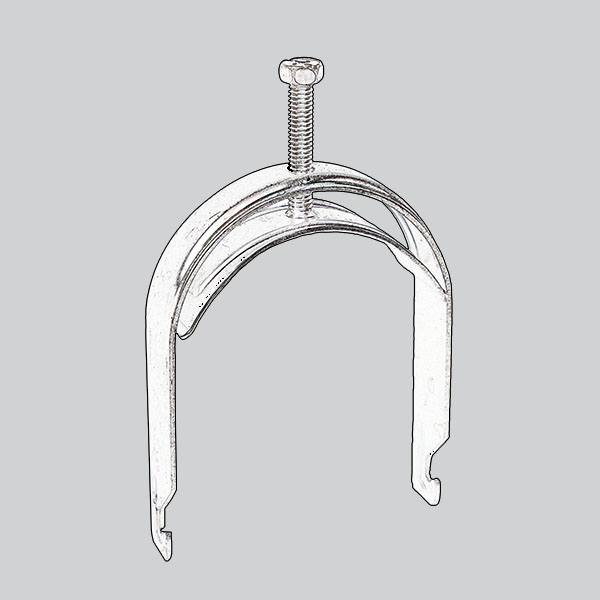

- Captured bolt attached to load distribution plate saddle; no small fasteners to drop
- Protective saddle inhibits cable and conduit damage
- Universal hex bolt head easily fastens with nut driver, screwdriver, wrench or ratchet
- Makes side-to-side conduit runs easier to install
- Can be easily removed/repositioned without disturbing adjacent clamps in run
- Part Number: GEZ050
- UPC: 727431913500
- Description: Cable O.D. Range (IN) Min: 0.34, Max: 0.71
- Carton Quantity: 100
- Pipe Size: 1/2"
- Max Rec Load Lbs: 200
- Part Number: GEZ075
- UPC: 727431913517
- Description: Cable O.D. Range (IN) Min: 0.57, Max: 0.92
- Carton Quantity: 100
- Pipe Size: 3/4"
- Max Rec Load Lbs: 200
- Part Number: GEZ100
- UPC: 727431913524
- Description: Cable O.D. Range (IN) Min: 0.72, Max: 1.16
- Carton Quantity: 100
- Pipe Size: 1"
- Max Rec Load Lbs: 200
- Part Number: GEZ125
- UPC: 727431913531
- Description: Cable O.D. Range (IN) Min: 1.00, Max: 1.51
- Carton Quantity: 50
- Pipe Size: 1-1/4"
- Max Rec Load Lbs: 200
- Part Number: GEZ150
- UPC: 727431913548
- Description: Cable O.D. Range (IN) Min: 1.25, Max: 1.74
- Carton Quantity: 50
- Pipe Size: 1-1/2"
- Max Rec Load Lbs: 350
- Part Number: GEZ200
- UPC: 727431913555
- Description: Cable O.D. Range (IN) Min: 1.74, Max: 2.20
- Carton Quantity: 50
- Pipe Size: 2"
- Max Rec Load Lbs: 350
- Part Number: GEZ250
- UPC: 727431913562
- Description: Cable O.D. Range (IN) Min: 2.38, Max: 2.88
- Carton Quantity: 25
- Pipe Size: 2-1/2"
- Max Rec Load Lbs: 350
- Part Number: GEZ300
- UPC: 727431913579
- Description: Cable O.D. Range (IN) Min: 2.72, Max: 3.50
- Carton Quantity: 25
- Pipe Size: 3"
- Max Rec Load Lbs: 350
- Part Number: GEZ350
- UPC: 727431913586
- Description: Cable O.D. Range (IN) Min: 3.25, Max: 4.00
- Carton Quantity: 25
- Pipe Size: 3-1/2"
- Max Rec Load Lbs: 350
- Part Number: GEZ400
- UPC: 727431913593
- Carton Quantity: 25
- Pipe Size: 4"
- Max Rec Load Lbs: 350
