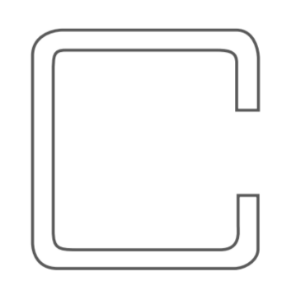

Thin C
Width:1.625" (41.3 mm)
Height: 1.875" (47.6 mm)
Weight: 1.85 lbs. (2.75 kg/m)
Thin C-Posts are made from 50,000 lb. minimum yield steel per ASTM A1011 and have beam load strengths greater than Sch. 40 pipe.
Available in any length, the C-Post utilizes a more effective shape of steel to create a greater bending strength perpendicular to the fence line.
It is the ideal choice for every residential, commercial and industrial project.
PHYSICAL PROPERTIES COMPARISON CHART
| Line Posts | Outside Material Lbs. Section Min. Yield Beam | Material Thickness | Lbs. Per Ft. |
|---|---|---|---|
|
Thinwall C 2" O.D. Sch. 40 |
1.875" x 1.625" 1.90" |
.105 .145 |
1.85 2.72 |
| Section Modules* | Min. Yield Strength | Beam Load** | |
|
.360 .3262 |
50,000 30,000 |
250* 136 |
|
|
Outside Material Lbs. Section Min. Yield Beam |
Material Thickness | Lbs. Per Ft. |
* Critical axis-perpendicular to fence line.
** Theoretical beam loads were computed as follows: Yield strength X section modulus divided by the height in inches (cantilever beam load 72")
