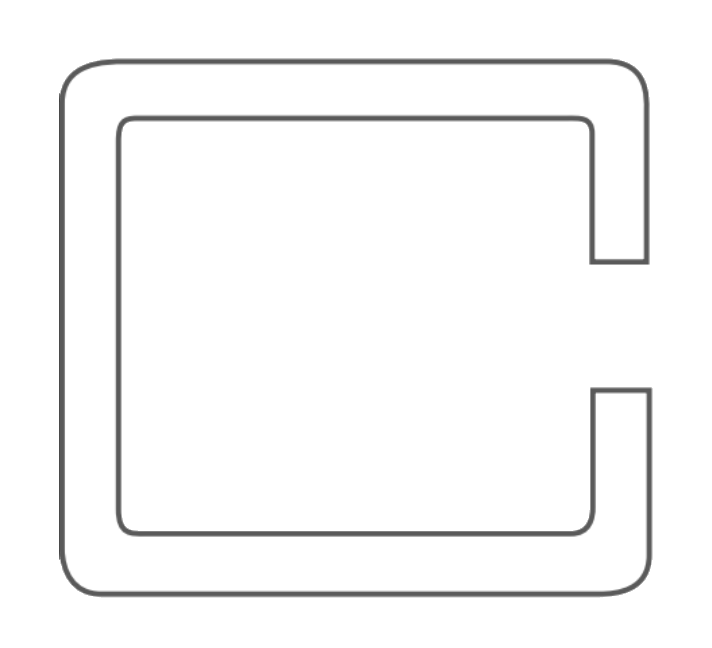

Super C Metal Fence Posts
Width:3.25" (82.55 mm)
Height: 2.5" (63.5 mm)
Weight: 4.50 lbs. (6.7 kg/m)
.150 Wall Thickness
Width:3.25" (82.55 mm)
Height: 2.5" (63.5 mm)
Weight: 5.40 lbs. (8.03 kg/m)
The Super-C metal fence posts come in 2 different wall thicknesses to suit your needs.
The unique design of the Super C channel fence post in either .130 wall or .150 wall 60,000-pound minimum yield steel provides great strength perpendicular to the fence line as well as providing double the bending strength of 3in and 4in O.D. Schedule 40 pipe.
Because our Super C-Posts are coated with 4oz. of zinc per sq. ft. per ASTM-F1043 it provides the heaviest coating available on the fence market.
The Super C-Post is the ultimate choice for your perimeter protection and maximum-security areas.
PHYSICAL PROPERTIES COMPARISON CHART
| Line Posts |
Outside Material Lbs. Section Min. Yield Beam |
Material Thickness | Lbs. Per Ft. |
|
Super C (.150) 4" O.D. Sch. 40 |
3.25" x 2.5" -- |
.150 .226 |
5.40 9.11 |
| Section Modules* | Min. Yield Strength | Beam Load** | |
|
1.260 2.394 |
60,000 30,000 |
1050* 998 |
|
|
Outside Material Lbs. Section Min. Yield Beam |
Material Thickness | Lbs. Per Ft. | |
|
3.25" x 2.5" -- |
.130 .203 |
4.50 5.79 |
|
| Section Modules* | Min Yield Strength | Beam Load** | |
|
1.083 1.064 |
60,000 30,000 |
902* 443 |
|
|
Outside Material Lbs/ Section Min. Yield Beam |
Material Thickness | Lbs. Per Ft. |
* Critical axis-perpendicular to fence line.
** Theoretical beam loads were computed as follows: Yield strength X section modulus divided by the height in inches (cantilever beam load 72”)
SUPER C SPECIFICATIONS/PHYSICAL PROPERTIES COMPARISON CHART
| Line Posts |
Wall Thickness |
Weight Per Ft. | Section Modules |
|
OPTION 1 3.25" x 2.5" Super C 2.875" O.D. Sch. 40 |
.130 .203 |
4.5 lbs. 5.79 lbs. |
1.089 1.064 |
| Yield Strength | Bending Strength | 6 ft. Canti. Load | |
|
60,000 30,000 |
64,980 31,921 |
902 lbs. 443 lbs. |
|
|
Wall Thickness |
Weight Per Ft. | Section Modules | |
|
OPTION 2 3.25" x 2.5" Super C |
.150 .226 |
5.4 lbs. 9.11 lbs. |
1,260 2,394 |
| Yield Strength | Bending Strength | 6 ft Canti. Load | |
|
60,000 30,000 |
75,600 71,820 |
1,050 lbs. 2,394 lbs. |
