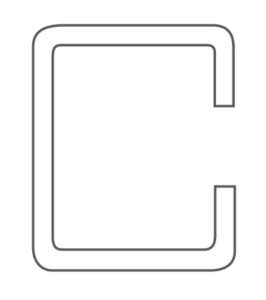

Heavy C Metal Fence Posts
Width:1.7" (43.2 mm)
Height: 2.25" (57.1 mm)
Weight: 2.78 lbs. (4.14 kg/m)
Heavy C metal fence posts are made from 50,000 lb. minimum yield steel per ASTM A1011 and have beam load strengths greater than Sch. 40 pipe.
Available in any length, the C-Channel fence post utilizes a more effective shape of steel to create a greater bending strength perpendicular to the fence line.
The Heavy C-Post fence is the ideal choice for every wood fence project 8ft tall, residential, commercial, industrial, or high security project.
PHYSICAL PROPERTIES COMPARISON CHART
| LINE POSTS | Outside Material Lbs. Section Min. Yield Beam |
Material Thickness | Lbs. Per. Ft. |
| Heavy C 2.5” O.D. Sch. 40 |
2.25” x 1.70” 2.375” |
.121 .154 |
2.78 3.65 |
| Section Modules* | Min. Yield Strength | Beam Load** | |
| .506 .5606 |
50,000 30,000 |
351* 234 |
|
| Outside Material Lbs. Section Min. Yield Beam |
Material Thickness | Lbs. Per. Ft. |
* Critical axis-perpendicular to fence line.
** Theoretical beam loads were computed as follows: Yield strength X section modulus divided by the height ininches (cantilever beam load 72”)
