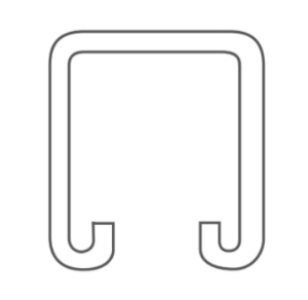

C-Top Rail



Width:1.25" (31.8 mm)

Height: 1.625" (41.3 mm)

Weight: 1.35 lbs. (2.0 kg/m)

C-Top Rail is roll-formed sections, 1.625 in. x 1.25 in., weighing 1.35 lbs. per ft. C-Top Rails are made from 50,000-pound minimum yield strength steel and have a minimum bending strength of 263 lbs. on a 10 ft. span. They are continuously coated with 4 oz. of zinc per square ft., per ASTM-F1043. With these attributes, C-Top Rail has superior strength and corrosion protection in comparison to 1.625 in. Schedule 90 pipe.

PHYSICAL PROPERTIES COMPARISON CHART

Line Posts	Outside Material Lbs. Section Min. Yield Beam	Material Thickness	Lbs. Per. Ft.
C-Top Rail 1.625” O.D. Sch. 40	1.625” x 1.25” 1.66”	.080 .140	1.35 2.27
	Section Modules*	Min. Yield Strength	Beam Load**
	.158 .235	50,000 30,000	263*** 98

* Critical axis-perpendicular to fence line.
** Theoretical beam loads were computed as follows: Yield strength X section modulus divided by the height in inches (cantilever beam load 72”)
*** Yield strength X section modulus X 4 divided* by length in inches (simple beam load 120”)
